Truck Camera
K400 four-channel commercial vehicle recorder with a 10.1-inch IPS touch display, MP5 multimedia playback, WiFi video viewing and reverse / turn-signal camera switching. ADAS / DSM assistance and SATA hard-disk storage are optional configurations.
MOQ
Contact for project MOQ
Lead Time
Contact for configuration and delivery schedule
| Model | K400 |
|---|---|
| Resolution | 1280 x 720 |

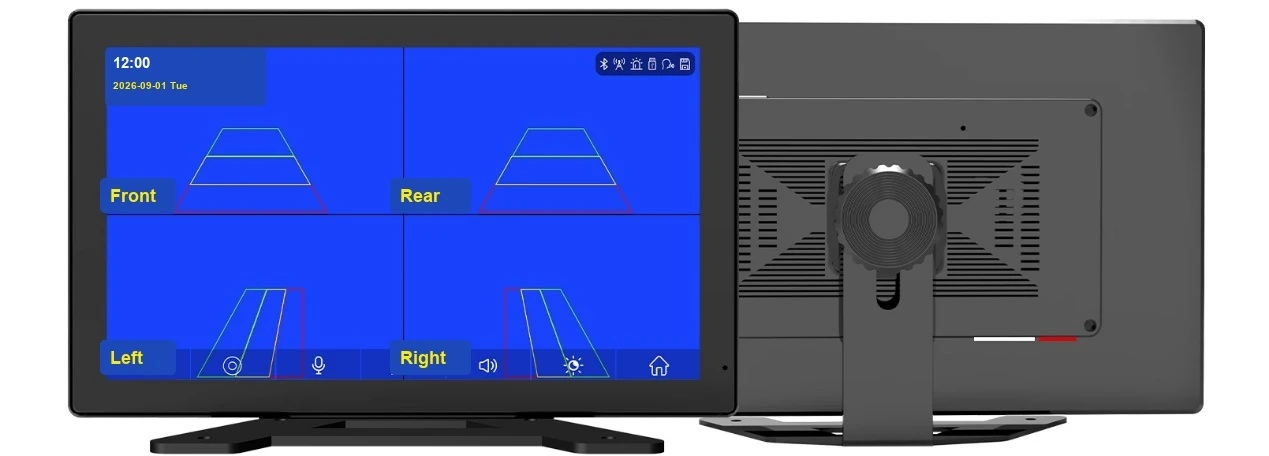

| Screen Size | 10.1-inch HD IPS display |
| Camera Channels | 720P PAL / 1080P PAL; NTSC available through software customization |
| Lens Angle | Confirm by model |
| Night Vision | Confirm by model |
| Storage | TF card up to 128GB; optional SATA HDD up to 2TB depending on version |
| Voltage | 9-36V DC with overload, overvoltage, undervoltage and short-circuit protection |
| Waterproof Rating | Confirm by model |

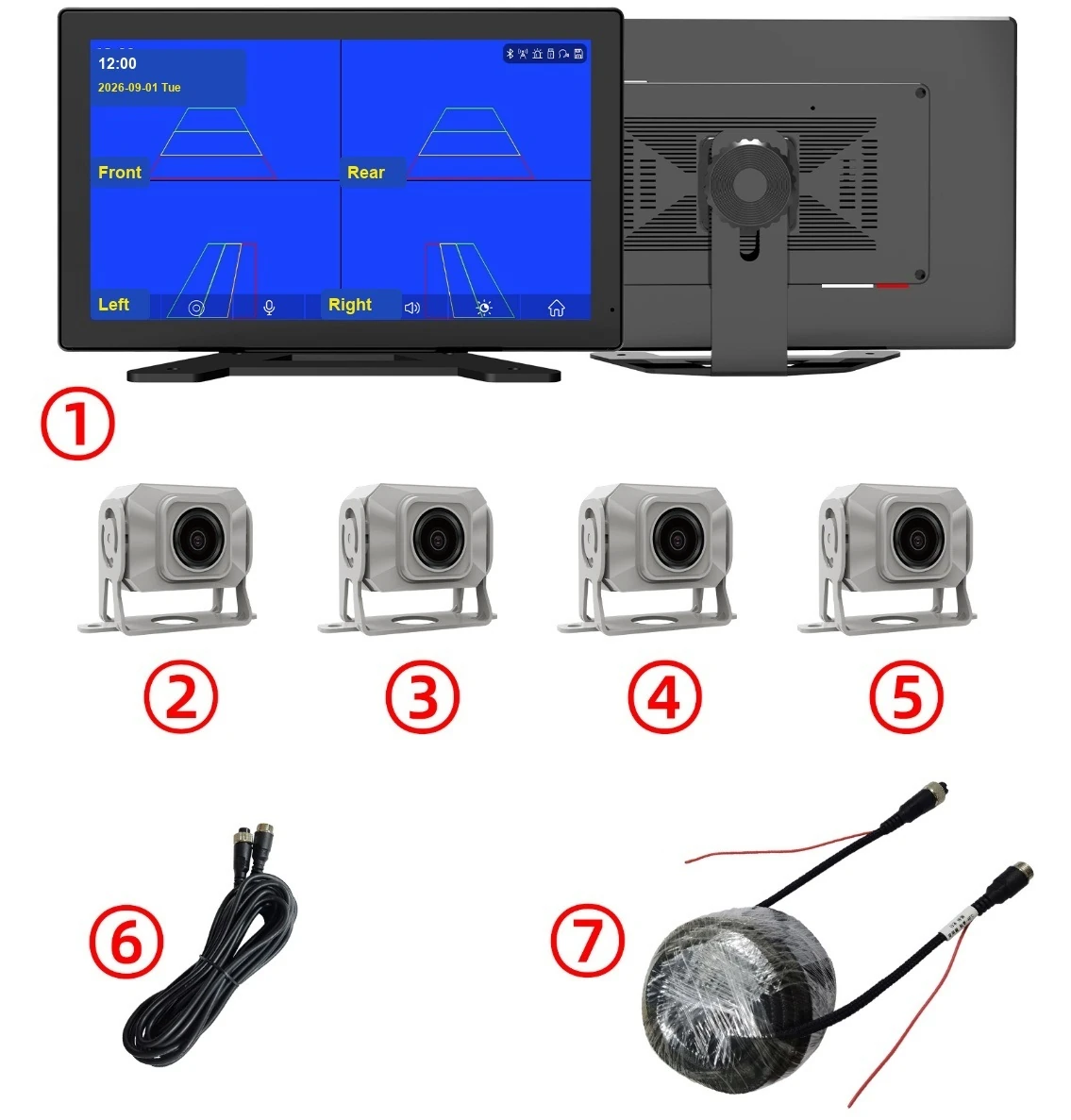

| Package Contents | Monitor and bracket, four cameras, three 5m aviation cables and one 15m aviation cable |
| Application | Trucks, buses and commercial vehicles |
| MOQ | Contact for project MOQ |
| Lead Time | Contact for configuration and delivery schedule |
| Brand | DUBY/OEM |
| Type | MP5 multimedia four-channel commercial vehicle recorder |
| Screen | 10.1-inch HD IPS display |
| Screen Resolution | 1280 x 720 |
| Video Input | 4-channel HD video input |
| Camera Standard | 720P PAL / 1080P PAL; NTSC available through software customization |
| Video Compression | H.264 |

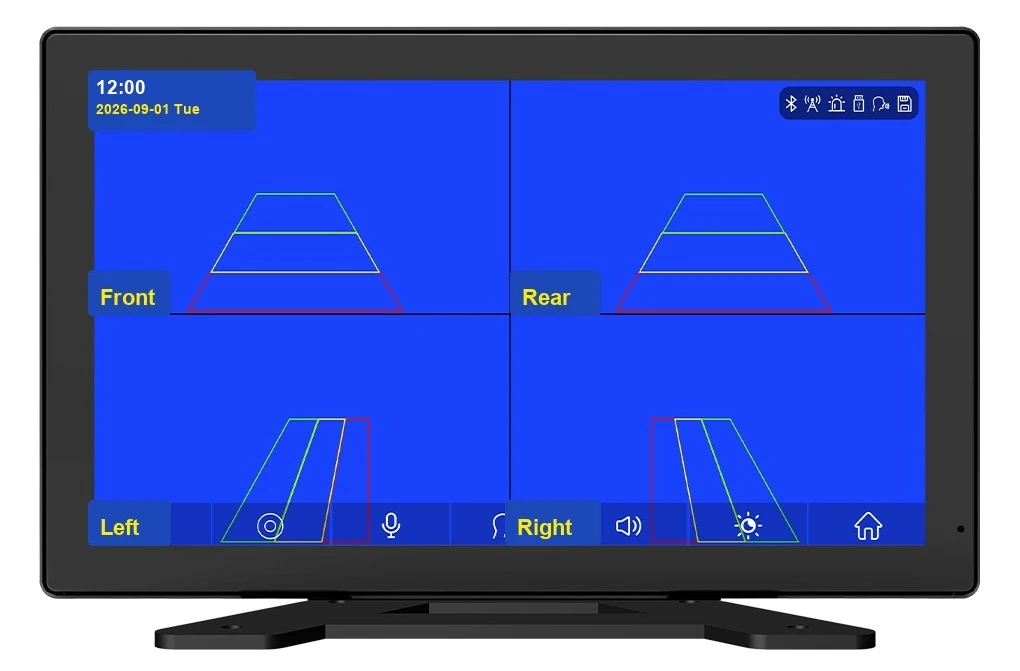

| Preview Mode | 4-view split-screen display |
| Operation | Touch control and buttons |
| Connectivity | WiFi video viewing and Bluetooth |

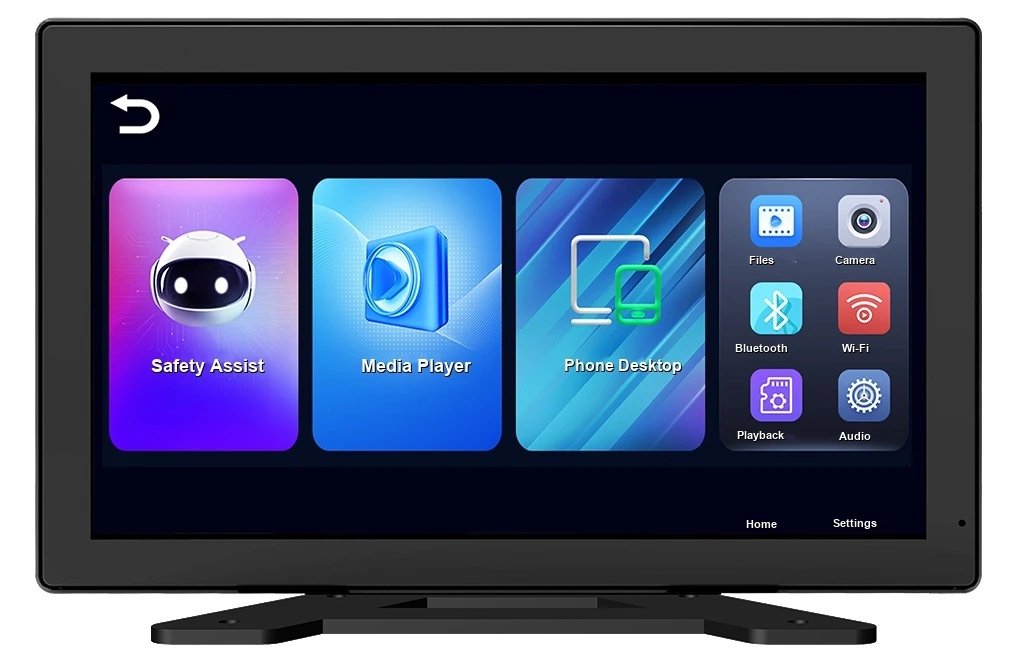

| Multimedia Playback | MP5 music and video playback from USB drive |

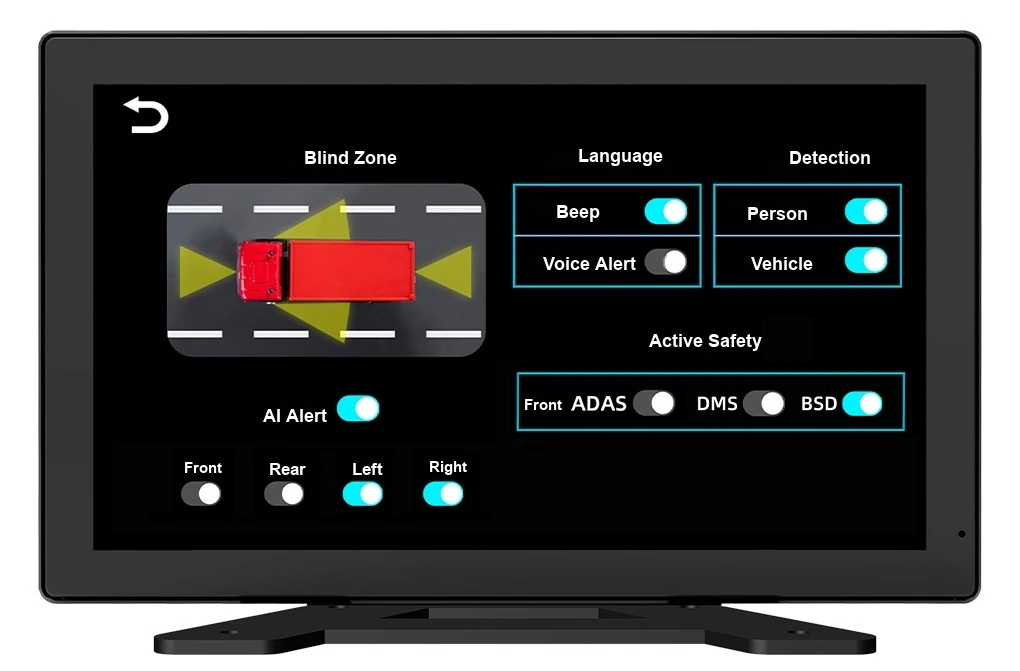

| Safety Assistance | ADAS / DSM optional, subject to order and software version |
| Camera Power | 12V supplied by monitor |
| Power | Less than 10W with display on during four-channel recording |

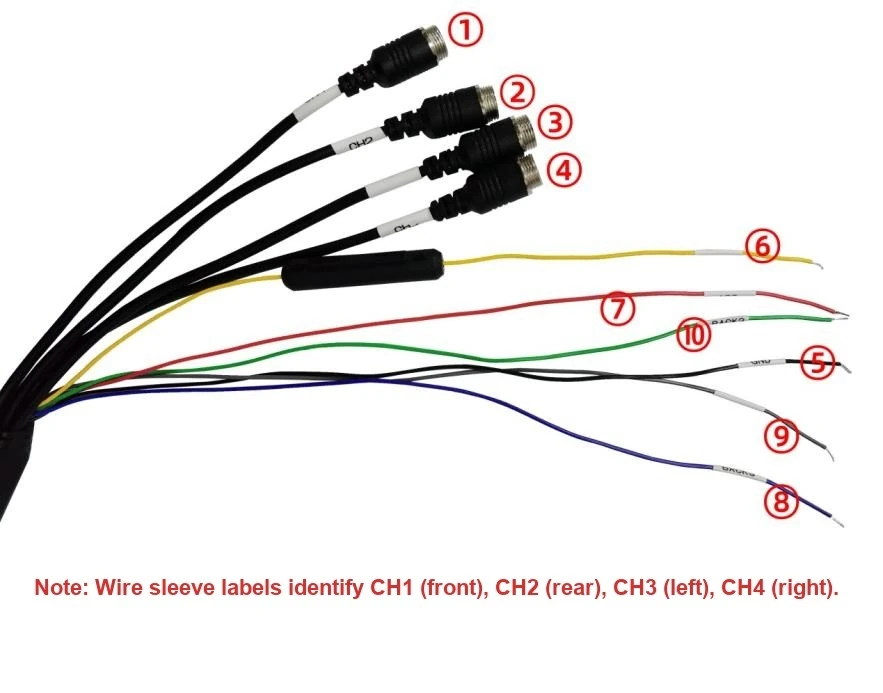

| Connector | Aviation camera connectors |
| Trigger Display | Reverse and turn-signal camera switching; 2 / 3 / 5-second delay or immediate return |
| Reversing Guidelines | Adjustable |
| Parking Monitoring | 8, 12, 24 or 48 hours |
| Loop Recording | 5, 10 or 30-minute segments; automatic recording at startup |
| Operating Temperature | -20 to 60 degrees C |
| Cooling | Passive cooling |
| Languages | Simplified Chinese, Traditional Chinese, English and Spanish, etc. |
Product Details
K400 4-Channel Truck Camera System
Private label, packing, firmware and project configuration support for overseas buyers.
Product appearance, function, aging and packing checks before shipment.
Fast quotation, export documents and shipping coordination for sample and batch orders.
Share your quantity, target vehicle, market and customization requirement.
