Truck Camera
K806 six-channel commercial vehicle camera recorder with a 10.36-inch IPS touch display, 4G remote monitoring, GPS fleet management, AI blind-spot warnings and Apple CarPlay / Android Auto connectivity.
MOQ
Contact for project MOQ
Lead Time
Contact for configuration and delivery schedule
| Model | K806 |
|---|---|
| Resolution | 1600 x 720 |
| Screen Size | 10.36-inch HD IPS touch display |
| Camera Channels | 720P PAL / 1080P PAL; NTSC available through software customization |
| Lens Angle | Confirm by model |
| Night Vision | Confirm by model |

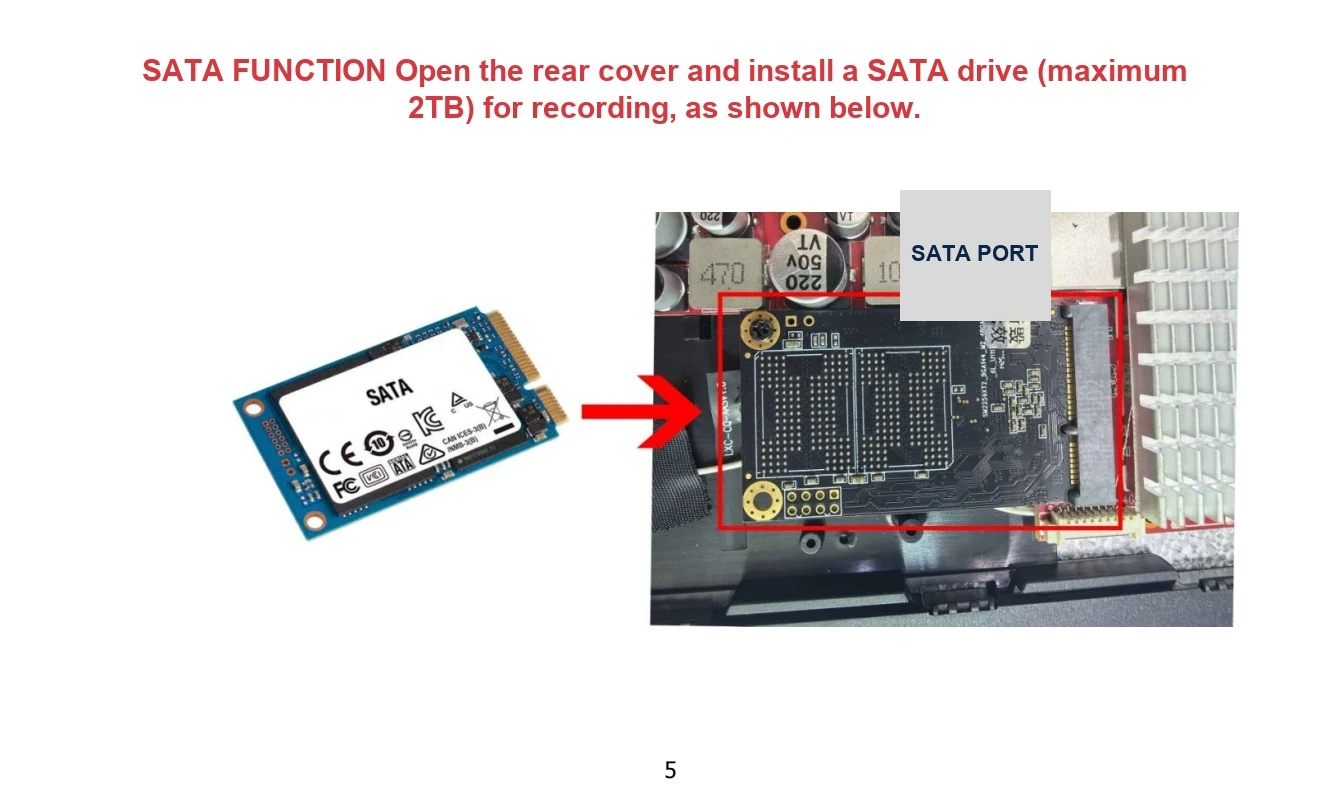

| Storage | TF card up to 128GB; storage expansion up to 2TB |
| Voltage | 9-36V DC with overload, overvoltage, undervoltage and short-circuit protection |
| Waterproof Rating | Confirm by model |

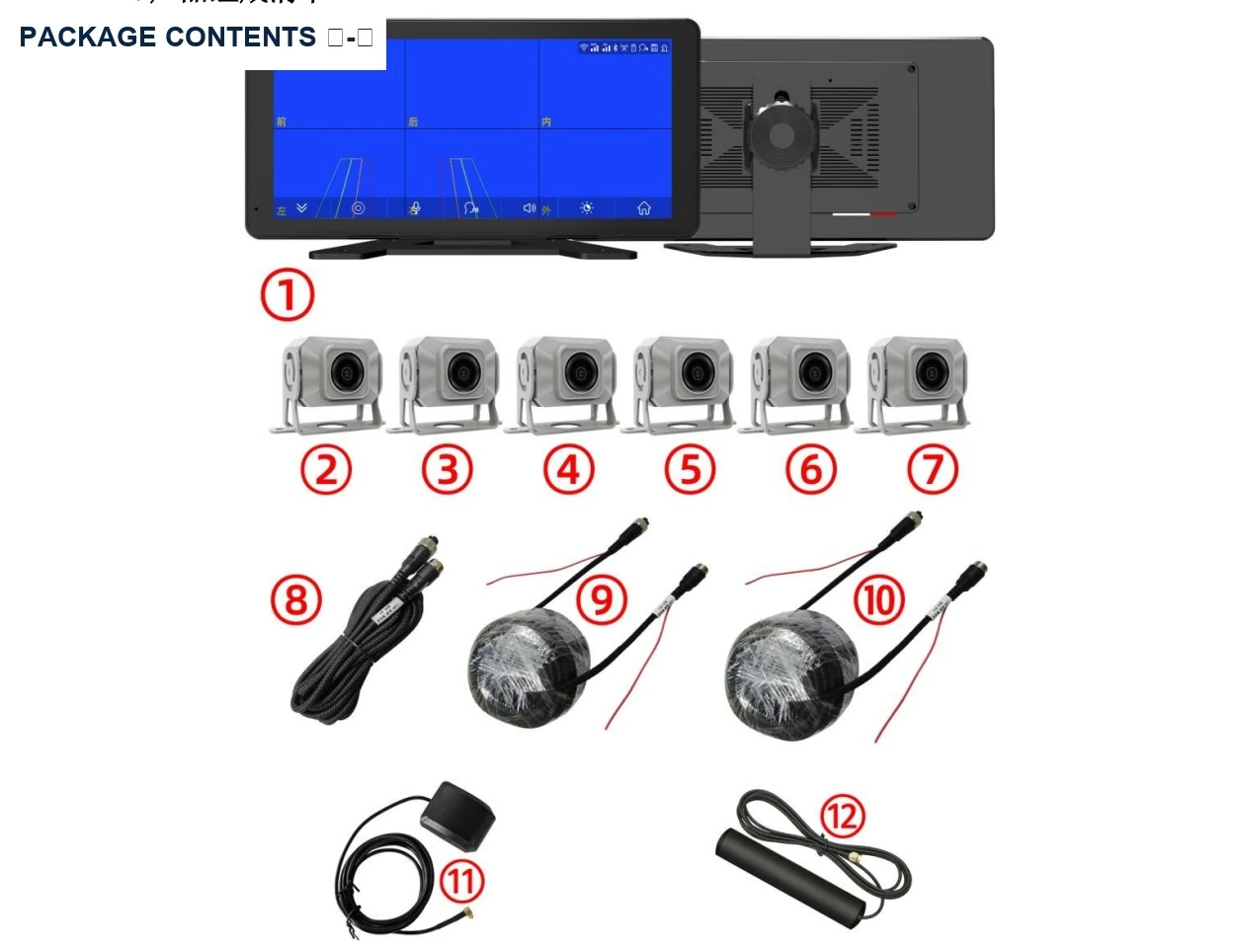

| Package Contents | Monitor and bracket, six cameras, three 5m cables, two 10m cables, one 20m cable, GPS antenna and 4G antenna |
| Application | Trucks, buses, commercial vehicles and machinery |
| MOQ | Contact for project MOQ |
| Lead Time | Contact for configuration and delivery schedule |
| Brand | DUBY/OEM |
| Type | 6-channel 4G commercial vehicle camera recorder |
| Screen | 10.36-inch HD IPS touch display |
| Screen Resolution | 1600 x 720 |
| Video Input | 6-channel HD video input |
| Recording Resolution | 720P recording; 1080P display output |
| Camera Standard | 720P PAL / 1080P PAL; NTSC available through software customization |
| Video Compression | H.264 |
| Preview Mode | 8 view layouts including six-channel split-screen |
| Operation | Touch and voice control |
| Connectivity | 4G, WiFi and Bluetooth |
| Remote Monitoring | CMSV7, live camera views, snapshots, video playback and two-way voice |
| Fleet Management | GPS positioning, route playback and remote fuel-theft monitoring |

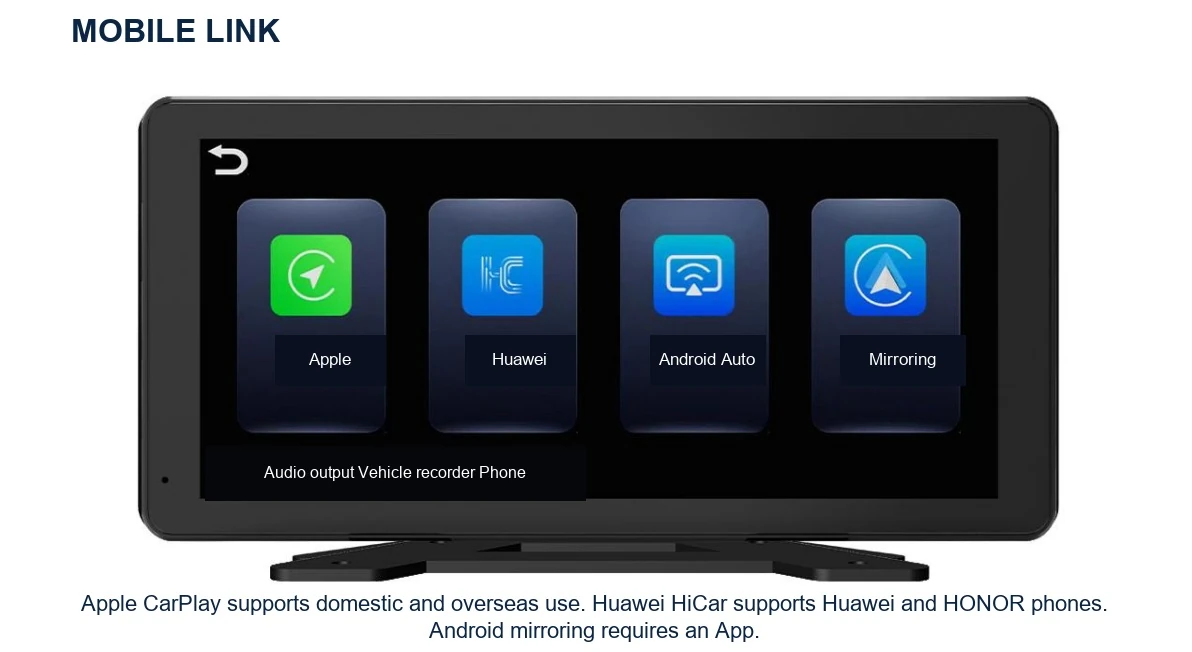

| Mobile Link | Apple CarPlay, Android Auto, Huawei HiCar and Android screen mirroring |

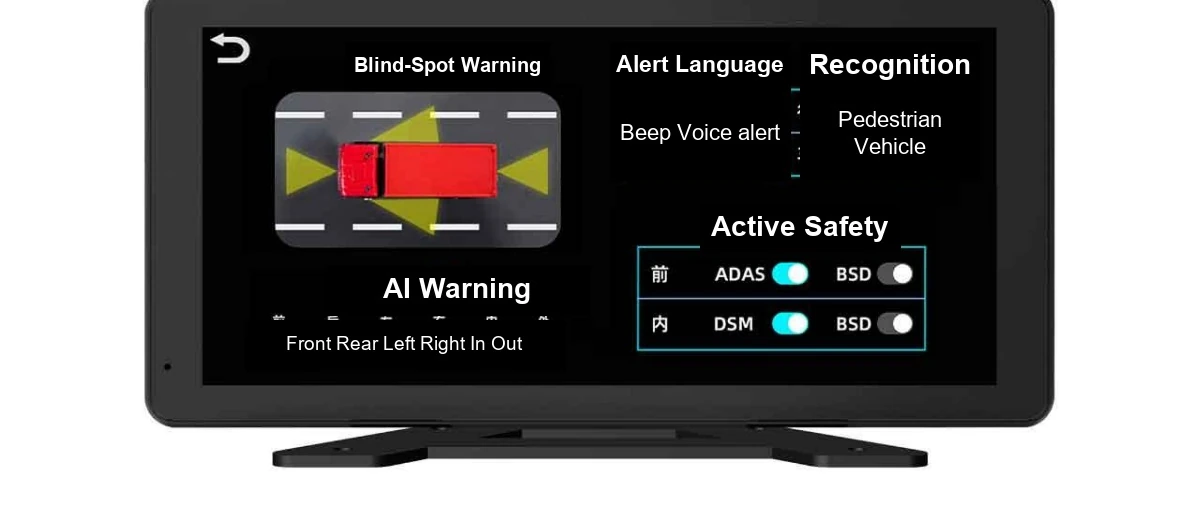

| Safety Assistance | AI pedestrian and vehicle blind-spot warnings; optional DMS and ADAS |

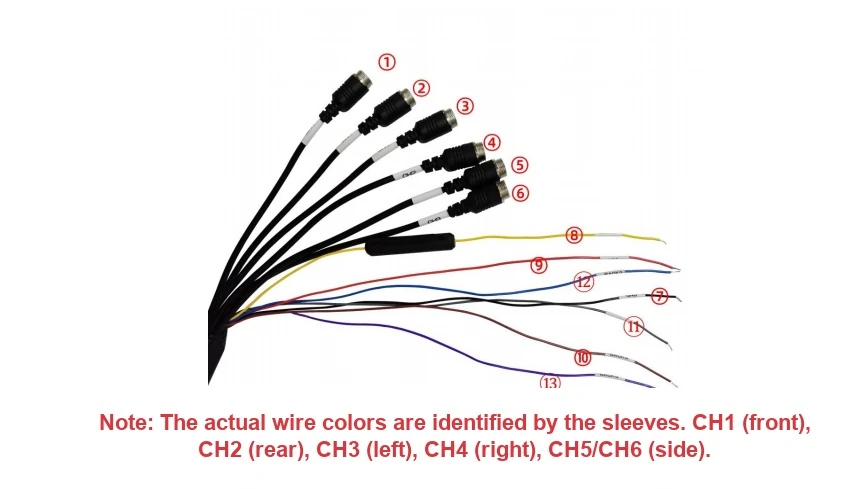

| Connector | Aviation camera connectors |
| Trigger Display | Reverse and turn-signal camera switching; adjustable reverse guidelines |
| Parking Monitoring | 8, 12, 24 or 48 hours |
| Loop Recording | 5, 10 or 30-minute segments; automatic recording at startup |
| Operating Temperature | -20 to 60 degrees C |
| Cooling | Passive cooling |
Product Details
K806 6-Channel 4G Truck Camera System
Private label, packing, firmware and project configuration support for overseas buyers.
Product appearance, function, aging and packing checks before shipment.
Fast quotation, export documents and shipping coordination for sample and batch orders.
Share your quantity, target vehicle, market and customization requirement.
